Configure security

Quickstarts > 5. Configure security

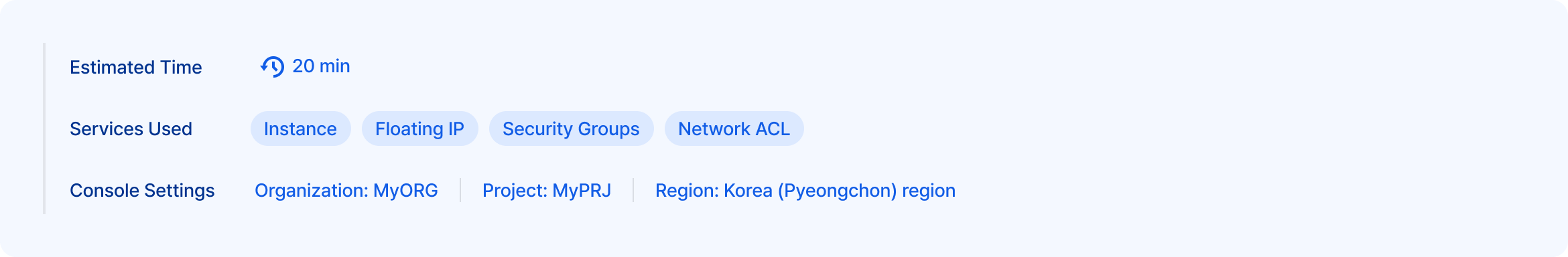

In this learning module, you will learn how to build a secure and reliable cloud environment by walking through the basic concepts and key features of setting up and managing security in NHN Cloud. NHN Cloud provides a variety of security features to keep your data safe and secure, and to manage your cloud resources efficiently. mod_info

Learning objectives

In this learning module, you'll learn to

  • Network security settings
    • Network isolation and protection with VPC and subnet configuration
    • Allow only authorized traffic through security groups and access control lists (ACLs)
  • Secure your data
    • Data encryption methods and storage security settings provided by NHN Cloud
    • Backup and recovery strategies for data loss

mod_diagram

Final configuration diagram

Before you begin

To get started with NHN Cloud, you'll need to prepare the following things

  • Standard Internet browser
    • You must have the latest version of a browser installed, such as Google Chrome, Microsoft Edge, Firefox, or Safari.
    • JavaScript and cookies must be enabled in your browser settings.
  • Internet connection environment
    • A stable internet connection is required, with a recommended bandwidth of at least 5 Mbps.
    • You must be able to communicate securely over HTTPS.

This guide starts with the steps after 4. Network setup and create instance.

In this learning module, you'll learn how to set up different security settings through four scenarios.

Scenario 1. Apply security rules to a web server instance to allow external access

  1. From the top menu of the NHN Cloud console, select the organization(MyORG), project(MyPRJ), and Korea (Pyeongchon) regionthat you want to use for your lab.
  2. In the left menu, click Network - Floating IP.
  3. Copy and recordthe IP address in the floating IP resource list where the connected device is linux-server-basic.
  4. Open a new window in your web browser and enter http://the copied linux-server-basic floating IP addressto confirm your connection.

    [Note] When you connect to that web server, you don't see any web pages. This is because you haven't set up a security group on that web server's network interface, and all communication is blocked.

  5. After returning to the console window in your web browser, click Network - Security Groupsin the left menu.
  6. On the Security Groups screen, click +Create security group.
  7. In the Create security group window, set the information below and click OK.
    • Name: MySG-HTTP
    • Click + on Add security rule to add a security rule with the following settings
      • Direction: Incoming
      • IP protocol: HTTP
      • Ether: IPv4
      • Remote: CIDR - 0.0.0.0/0
  8. In the Success window, click OK.
  9. In the left menu, click Compute - Instance.
  10. On the Instance screen, click to select the linux-server-basic instance.
  11. In the bottom split screen, click the Network tab.
  12. Select the Automatically created network interface resource (the network interface ID is an arbitrary ID) that was created with the instance when it was created.
  13. Just above the list of network interfaces, click Change security group.
  14. In the Change Security Group window, select MySG-HTTPfrom the Select a security group list to add it, and then click OK.
  15. Open a new window in your web browser and type http://copied linux-server-basic floating IP addressto confirm your connection.
  16. Verify that the web page is outputting normally.

    pic1

Scenario 2. Allow SSH, ICMP (Ping, etc.) communication only from IPs allowed on the web server instance

  1. In the left menu, click Network - Security Groups.
  2. On the Security Groups screen, click MySG-SSHto select it.
  3. On the bottom split-screen Security Rules tab, select the rule with a port range of 22 (SSH) and click Changeon the right.
  4. In the Change Security Rule window, click CIDRfor Remote entry, select My IPfrom the drop-down menu, and click OK.
  5. In the Success window, click OK.
  6. Click + Create security rule.
  7. In the Create Security Rule window, set the information below and click OK.
    • Direction: Incoming
    • IP Protocol: ALL ICMP
    • Ether: IPv4
    • Remote: My IP
  8. In the Success window, click OK.
  9. Run a new terminal or PowerShell.
  10. Run the commands below to test communication.
#bash
ping (linux-server-basic floating IP address)

Verify that ping communication is allowed.

Scenario 3. Block a specific network band with Network ACL settings

  1. In the left menu of the console window, click Network - Network ACLs.
  2. On the Network ACLs > Management screen,click + Create Network ACL.
  3. In the Create Network ACL window, set the information below and click OK.
    • Name: MyACL
  4. In the Success window, click OK.
  5. Click to select the MyACLthat was created.
  6. In the bottom split screen, click the ACL Rule tab.
  7. In the ACLRule list in MyACL, select the ACLRule in the 101 sequence that displays "default allow rule"** in the description, and then click Delete ACL Rule**.
  8. In the Success window, click OK.
  9. At the top of the screen, click the Bindings tab of the Network ACL tab s.
  10. +Create ACL Binding.
  11. In the Create ACL Binding window, setthe information below and click OK.
    • Network ACL: MyACL
    • VPC: MyVPC
  12. In the Success window, click OK.
  13. Run the commands below inTerminal or PowerShellto test communication.
ping (linux-server-basic floating IP address)

  • Verify that ping communication is blocked**.

  • Open a new window in your web browser and type http://the copied linux-server-basic floating IP addressto confirm your connection.

  • Verify that Http communication is blocked.

Scenario 4. Apply additional Network ACL rules to allow external access

  1. In the left menu of the console window, click Network - Network ACLs.
  2. Click MyACL, and then click the ACL Rule tab in the bottom split pane.
  3. + Create ACL Rule.
  4. In the Create ACL Rule window, set the information below and click OK.
    • IP Protocol: ICMP
    • Origin CIDR: 0.0.0.0/0
    • Destination CIDR: linux-server-basic floating IP address/32
    • Order: 110
    • How to apply: Block
  5. In the Success window, click OK.
  6. + Create ACL Rule.
  7. In the Create ACL Rule window, set the information below and click OK.
    • IP Protocol: ICMP
    • Origin CIDR: The IP address of the computer you're working on/32 > [Note] > > * How to determine the IP address of the computer you're working on > * You can find out the IP address of the computer you're working onby launching Terminal or PowerShell and running curl ifconfig.me.
    • Destination CIDR: linux-server-basic floating IP address/32
    • Order: 109
    • Enforcement method: Allow
  8. In the Create ACL Rule window, set the information below and click OK.
    • IP Protocol: Apply globally
    • Origin CIDR: 0.0.0.0/0
    • Destination CIDR: 0.0.0.0/0
    • Order: 32764
    • Enforcement method: Allow
  9. Run the commands below inTerminal or PowerShellto test communication.
#bash
ping (linux-server-basic floating IP address)

  • Verify that ping communication is only allowed from the IP of the computer you're working on.

  • Open a new window in your web browser and type http://the copied linux-server-basic floating IP addressto confirm your connection.

  • Verify that Http communication is allowed from all IPs.

    pic2
