Game > GameTalk > API v1.1 가이드

GameTalk Server API는 RESTful 형식으로 다음과 같은 API를 제공합니다.

Advance Notice

Server API를 사용하려면 다음과 같은 정보들이 필요합니다.

URL

API를 호출하기 위한 URL(서버 주소)은 다음과 같습니다. 해당 주소는 GameTalk Console 화면에서도 확인할 수 있습니다.

https://api-gametalk-back.nhncloudservice.com

pre_server_url_v1.0

AppKey

AppKey는 GameTalk Console에서 확인할 수 있습니다.

pre_server_appkey_v1.0

SecretKey

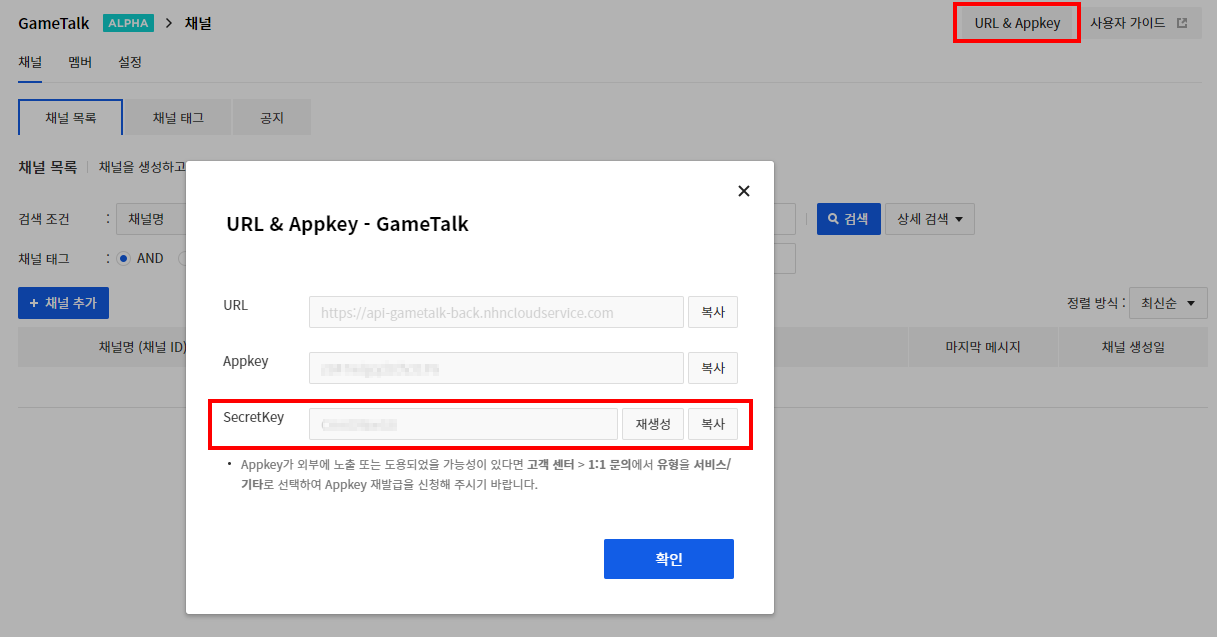

비밀 키(secret key)는 API에 대한 접근 제어 방안으로 GameTalk Console에서 확인할 수 있습니다. 비밀 키는 Server API를 호출할 때 HTTP Header에 필수로 설정해야 합니다.

[참고] 비밀 키가 외부에 노출되어 잘못된 호출이 발생할 경우 재생성을 클릭해 새 비밀 키를 생성한 뒤 새로 만든 비밀 키를 사용해야 합니다.

pre_server_secretkey_v1.0

TransactionId

TransactionId는 API를 호출하는 서버에서 내부적으로 API 요청을 관리할 수 있는 기능입니다. 호출 서버에서 HTTP Header에 트랜잭션 ID를 설정하여 API를 호출하면 GameTalk 서버는 응답 HTTP Header 및 응답 결과의 Response Body Header에 해당 TransactionId를 설정하여 결과를 전달합니다.

Common

HTTP Header

API 호출 시 HTTP Header에 다음 항목들을 설정해야 합니다.

Name Required Value
Content-Type mandatory application/json; charset=UTF-8
X-Secret-Key mandatory SecretKey 설명 참고
X-GT-Transaction-Id optional TransactionId 설명 참고

API Response

모든 API 요청에 대한 응답으로 HTTP 200 OK를 전달합니다. API 요청 성공 유무는 Response Body의 Header 항목을 참고하여 판단할 수 있습니다.

[Request]

Content-Type: application/json
X-GT-Transaction-Id: 88a1ae42-6b1d-48c8-894e-54e97aca07fq
X-Secret-Key: IgsaAP
GET https://api-gametalk-back.nhncloudservice.com

[Response]

HTTP/1.1 200 OK
Content-Type: application/json;charset=UTF-8
X-GT-Transaction-Id: 88a1ae42-6b1d-48c8-894e-54e97aca07fq
{
    "header" : {
        "transactionId": "88a1ae42-6b1d-48c8-894e-54e97aca07fq",
        "isSuccessful" : true,
        "resultCode": 0,
        "resultMessage" : "SUCCESS"
    }
}
Key Type Description
transactionId String API 요청 시 HTTP Header에 설정한 값.
해당 값을 전달하지 않으면 GameTalk 내부적으로 생성된 값을 반환
isSuccessful boolean 성공 여부
resultCode int 응답 코드
성공 시 0, 실패 시 오류 코드 반환
resultMessage String 응답 메시지

Channel

Create Channel

채널을 생성합니다.

[Method, URI]

Method URI
POST /game-talk/v1.1/appkeys/{appKey}/channels

[Request Header]

공통 사항 확인

[Path Variable]

Name Type Value
appKey String NHN Cloud 프로젝트 AppKey

[Request Body]

{
  "name" : "String",
  "nickname" : "String",
  "tagIdList": [1],
  "autoDelete": true
}
Name Type Required Value
name String mandatory 채널명
nickname String optional 채널 별칭
tagIdList long[] optional 채널 태그
autoDelete boolean optional 채널 자동 삭제 사용 여부(기본값은 true)

[Response Body]

{
  "header": {
    "resultCode": 0,
    "resultMessage": "String",
    "transactionId": "String",
    "isSuccessful": true
  },
  "result": {
    "appKey": "String",
    "id": "String",
    "type": "String",
    "name": "String",
    "nickname": "String",
    "autoDelete": true,
    "deleted": false,
    "lastMessageId": 0,
    "subscriberCount": 0,
    "tagList": [
      {
        "id": 1,
        "name": "String"
      }
    ],
    "regUser": "String",
    "regDate": "2023-01-01T00:00:00+09:00"
  }
}
Key Type Description
result Object 채널 정보
result.appKey String 프로젝트 앱키(Appkey)
result.id String 채널 ID
result.type String 채널 타입
PUBLIC(일반)
result.name String 채널명
result.nickname String 채널 별칭
result.autoDelete boolean 채널 자동 삭제 사용 여부
result.deleted boolean 채널 삭제 여부
result.lastMessageId Long 마지막 메시지 ID
result.subscriberCount int 채널 구독자 수
result.tagList Array[Object] 채널 태그 목록
result.tagList[].id long 채널 태그 ID
result.tagList[].name String 채널 태그명
result.regUser String 생성자
result.regDate Date 생성 일시. 날짜와 시간은 ISO 8601 표준에 따름.

Update Channel

채널을 수정합니다.

[Method, URI]

Method URI
PUT /game-talk/v1.1/appkeys/{appKey}/channels/{channelId}

[Request Header]

공통 사항 확인

[Path Variable]

Name Type Value
appKey String NHN Cloud 프로젝트 AppKey
channelId String 채널 ID

[Request Body]

{
  "name" : "String",
  "nickname" : "String",
  "tagIdList": [1],
  "autoDelete": true
}
Name Type Required Value
name String optional 채널명
nickname String optional 채널 별칭
tagIdList long[] optional 채널 태그
autoDelete boolean optional 채널 자동 삭제 사용 여부(기본값은 true)

[Response Body]

{
  "header": {
    "resultCode": 0,
    "resultMessage": "String",
    "transactionId": "String",
    "isSuccessful": true
  }
}

Delete Channel

채널을 삭제합니다.

[Method, URI]

Method URI
DELETE /game-talk/v1.1/appkeys/{appKey}/channels/{channelId}

[Request Header]

공통 사항 확인

[Path Variable]

Name Type Value
appKey String NHN Cloud 프로젝트 AppKey
channelId String 채널 ID

[Request Body]

없음

[Response Body]

{
  "header": {
    "resultCode": 0,
    "resultMessage": "String",
    "transactionId": "String",
    "isSuccessful": true
  }
}

Get Channel List

채널 목록을 조회합니다.

[Method, URI]

Method URI
GET /game-talk/v1.1/appkeys/{appKey}/channels

[Request Header]

공통 사항 확인

[Path Variable]

Name Type Value
appKey String NHN Cloud 프로젝트 AppKey

[Request Parameter]

Name Type Required Value
page int optional 페이지 번호(기본값은 0)
size int mandatory 한 페이지 목록 개수(최대 100)
tagType String optional 태그 검색 조건(기본값은 OR)
OR, AND
tagIdList String optional 태그 ID 목록
각 ID를 쉼표(,)로 구분(1, 2, 3...)

[Request Body]

없음

[Response Body]

{
  "header" : {
    "resultCode" : 0,
    "resultMessage" : "String",
    "transactionId" : "String",
    "isSuccessful" : true
  },
  "pagingInfo" : {
    "first" : true,
    "last" : true,
    "numberOfElements" : 0,
    "page" : 0,
    "size" : 0,
    "totalElements" : 0,
    "totalPages" : 0
  },
  "channelList" : [
    {
      "appKey" : "String",
      "id" : "String",
      "type" : "String",
      "name" : "String",
      "nickname" : "String",
      "autoDelete" : true,
      "deleted" : false,
      "lastMessageId" : 1282796687576789,
      "subscriberCount" : 0,
      "tagList" : [
        {
          "id" : 1,
          "name" : "String"
        }
      ],
      "regUser" : "String",
      "regDate" : "2023-01-01T00:00:00+09:00",
      "modUser": "String",
      "modDate": "2023-01-01T00:00:00+09:00"
    }
  ]
}
Key Type Description
pagingInfo Object 페이징 정보
pagingInfo.first boolean 첫 페이지 여부
pagingInfo.last boolean 마지막 페이지 여부
pagingInfo.numberOfElements int 조회된 페이지 목록 개수
pagingInfo.page int 현재 페이지 번호
pagingInfo.size int 페이지 목록 개수
pagingInfo.totalElements long 총 목록 개수
pagingInfo.totalPages int 총 페이지 개수
channelList Array[Object] 채널 목록 정보
channelList[].appKey String 프로젝트 앱키(Appkey)
channelList[].id String 채널 ID
channelList[].type String 채널 타입
PUBLIC(일반)
channelList[].name String 채널명
channelList[].nickname String 채널 별칭
channelList[].autoDelete boolean 채널 자동 삭제 사용 여부
channelList[].deleted boolean 채널 삭제 여부
channelList[].lastMessageId Long 마지막 메시지 ID
channelList[].subscriberCount int 채널 구독자 수
channelList[].tagList Array[Object] 채널 태그 목록
channelList[].tagList[].id long 채널 태그 ID
channelList[].tagList[].name String 채널 태그명
channelList[].regUser String 생성자
channelList[].regDate Date 생성 일시. 날짜와 시간은 ISO 8601 표준에 따름.
channelList[].modUser String 수정자
channelList[].modDate Date 수정 일시. 날짜와 시간은 ISO 8601 표준에 따름.

Get Channel

채널을 조회합니다.

[Method, URI]

Method URI
GET /game-talk/v1.1/appkeys/{appKey}/channels/{channelId}

[Request Header]

공통 사항 확인

[Path Variable]

Name Type Value
appKey String NHN Cloud 프로젝트 AppKey
channelId String 채널 ID

[Request Parameter]

없음

[Request Body]

없음

[Response Body]

{
  "header" : {
    "resultCode" : 0,
    "resultMessage" : "String",
    "transactionId" : "String",
    "isSuccessful" : true
  },
  "result" : {
    "appKey" : "String",
    "id" : "String",
    "type" : "String",
    "name" : "String",
    "nickname" : "String",
    "autoDelete" : true,
    "deleted" : false,
    "lastMessageId" : 1282796687576789,
    "subscriberCount" : 0,
    "tagList" : [
    {
      "id" : 1,
      "name" : "String"
    }
    ],
    "regUser" : "String",
    "regDate" : "2023-01-01T00:00:00+09:00",
    "modUser": "String",
    "modDate": "2023-01-01T00:00:00+09:00"
  }
}
Key Type Description
result Object 채널 목록 정보
result.appKey String 프로젝트 앱키(Appkey)
result.id String 채널 ID
result.type String 채널 타입
PUBLIC(일반)
result.name String 채널명
result.nickname String 채널 별칭
result.autoDelete boolean 채널 자동 삭제 사용 여부
result.deleted boolean 채널 삭제 여부
result.lastMessageId Long 마지막 메시지 ID
result.subscriberCount int 채널 구독자 수
result.tagList Array[Object] 채널 태그 목록
result.tagList[].id long 채널 태그 ID
result.tagList[].name String 채널 태그명
result.regUser String 생성자
result.regDate Date 생성 일시. 날짜와 시간은 ISO 8601 표준에 따름.
result.modUser String 수정자
result.modDate Date 수정 일시. 날짜와 시간은 ISO 8601 표준에 따름.

Subscribe Channel

채널을 구독합니다.

[Method, URI]

Method URI
POST /game-talk/v1.1/appkeys/{appKey}/channels/{channelId}/subscribes

[Request Header]

공통 사항 확인

[Path Variable]

Name Type Value
appKey String NHN Cloud 프로젝트 AppKey
channelId String 채널 ID

[Request Body]

{
  "userId" : "String"
}
Name Type Required Value
userId String mandatory 유저 ID

[Response Body]

{
  "header": {
    "resultCode": 0,
    "resultMessage": "String",
    "transactionId": "String",
    "isSuccessful": true
  }
}

Unsubscribe Channel

채널 구독을 해제합니다.

[Method, URI]

Method URI
DELETE /game-talk/v1.1/appkeys/{appKey}/channels/{channelId}/subscribes

[Request Header]

공통 사항 확인

[Path Variable]

Name Type Value
appKey String NHN Cloud 프로젝트 AppKey
channelId String 채널 ID

[Request Body]

{
  "userId" : "String"
}
Name Type Required Value
userId String mandatory 유저 ID

[Response Body]

{
  "header": {
    "resultCode": 0,
    "resultMessage": "String",
    "transactionId": "String",
    "isSuccessful": true
  }
}

Get Subscriber

채널 구독자를 조회합니다.

[Method, URI]

Method URI
GET /game-talk/v1.1/appkeys/{appKey}/channels/{channelId}/subscribes

[Request Header]

공통 사항 확인

[Path Variable]

Name Type Value
appKey String NHN Cloud 프로젝트 AppKey
channelId String 채널 ID

[Request Parameter]

Name Type Required Value
page int optional 페이지 번호(기본값은 0)
size int mandatory 한 페이지 목록 개수(최대 100)

[Request Body]

없음

[Response Body]

{
  "header" : {
    "resultCode" : 0,
    "resultMessage" : "String",
    "transactionId" : "String",
    "isSuccessful" : true
  },
  "pagingInfo" : {
    "first" : true,
    "last" : true,
    "numberOfElements" : 0,
    "page" : 0,
    "size" : 0,
    "totalElements" : 0,
    "totalPages" : 0
  },
  "userList": [
    {
      "appKey": "String",
      "userId": "String",
      "nickname": "String",
      "languageCode": "String",
      "valid": true,
      "lastLoginDate": "2023-01-01T00:00:00+09:00",
      "regDate": "2023-01-01T00:00:00+09:00"
    }
  ]
}
Key Type Description
pagingInfo Object 페이징 정보
pagingInfo.first boolean 첫 페이지 여부
pagingInfo.last boolean 마지막 페이지 여부
pagingInfo.numberOfElements int 조회된 페이지 목록 개수
pagingInfo.page int 현재 페이지 번호
pagingInfo.size int 페이지 목록 개수
pagingInfo.totalElements long 총 목록 개수
pagingInfo.totalPages int 총 페이지 개수
userList Array[Object] 구독자 정보
userList[].appKey String 프로젝트 앱키(Appkey)
userList[].userId String 유저 ID
userList[].nickname String 유저 닉네임
userList[].languageCode String 언어 코드
userList[].valid boolean 유저 상태
true(정상), false(삭제)
userList[].lastLoginDate Date 마지막 로그인 일시. 날짜와 시간은 ISO 8601 표준에 따름.
userList[].regDate Date 구독 일시. 날짜와 시간은 ISO 8601 표준에 따름.

Tag

Get Tag List

태그 목록을 조회합니다.

[Method, URI]

Method URI
GET /game-talk/v1.1/appkeys/{appKey}/tags

[Request Header]

공통 사항 확인

[Path Variable]

Name Type Value
appKey String NHN Cloud 프로젝트 AppKey

[Request Parameter]

Name Type Required Value
page int optional 페이지 번호(기본값은 0)
size int mandatory 한 페이지 목록 개수(최대 100)

[Request Body]

없음

[Response Body]

{
  "header" : {
    "resultCode" : 0,
    "resultMessage" : "String",
    "transactionId" : "String",
    "isSuccessful" : true
  },
  "pagingInfo" : {
    "first" : true,
    "last" : true,
    "numberOfElements" : 0,
    "page" : 0,
    "size" : 0,
    "totalElements" : 0,
    "totalPages" : 0
  },
  "tagList": [
    {
      "appKey": "String",
      "id": 1,
      "name": "String",
      "description": "String",
      "regUser": "String",
      "regDate": "2023-01-01T00:00:00+09:00",
      "modUser": "String",
      "modDate": "2023-01-01T00:00:00+09:00"
    }
  ]
}
Key Type Description
pagingInfo Object 페이징 정보
pagingInfo.first boolean 첫 페이지 여부
pagingInfo.last boolean 마지막 페이지 여부
pagingInfo.numberOfElements int 조회된 페이지 목록 개수
pagingInfo.page int 현재 페이지 번호
pagingInfo.size int 페이지 목록 개수
pagingInfo.totalElements long 총 목록 개수
pagingInfo.totalPages int 총 페이지 개수
tagList Array[Object] 태그 목록 정보
tagList[].appKey String NHN Cloud 프로젝트 AppKey
tagList[].id long 태그 ID
tagList[].name String 태그명
tagList[].description String 태그 설명
tagList[].regUser String 생성자
tagList[].regDate Date 생성 일시. 날짜와 시간은 ISO 8601 표준에 따름.
tagList[].modUser String 수정자
tagList[].modDate Date 수정 일시. 날짜와 시간은 ISO 8601 표준에 따름.

Get Tag

태그를 조회합니다.

[Method, URI]

Method URI
GET /game-talk/v1.1/appkeys/{appKey}/tags/{tagId}

[Request Header]

공통 사항 확인

[Path Variable]

Name Type Value
appKey String NHN Cloud 프로젝트 AppKey
tagId long 태그 ID

[Request Parameter]

없음

[Request Body]

없음

[Response Body]

{
  "header" : {
    "resultCode" : 0,
    "resultMessage" : "String",
    "transactionId" : "String",
    "isSuccessful" : true
  },
  "result": {
    "appKey": "String",
    "id": 1,
    "name": "String",
    "description": "String",
    "regUser": "String",
    "regDate": "2023-01-01T00:00:00+09:00",
    "modUser": "String",
    "modDate": "2023-01-01T00:00:00+09:00"
  }
}
Key Type Description
result Object 태그 정보
result.appKey String NHN Cloud 프로젝트 AppKey
result.id long 태그 ID
result.name String 태그명
result.description String 태그 설명
result.regUser String 생성자
result.regDate Date 생성 일시. 날짜와 시간은 ISO 8601 표준에 따름.
result.modUser String 수정자
result.modDate Date 수정 일시. 날짜와 시간은 ISO 8601 표준에 따름.

User

Get User

사용자 정보를 조회합니다.

[Method, URI]

Method URI
GET /game-talk/v1.1/appkeys/{appKey}/users/{userId}

[Request Header]

공통 사항 확인

[Path Variable]

Name Type Value
appKey String NHN Cloud 프로젝트 AppKey
userId String 유저 ID

[Request Parameter]

없음

[Request Body]

없음

[Response Body]

{
  "header" : {
    "resultCode" : 0,
    "resultMessage" : "String",
    "transactionId" : "String",
    "isSuccessful" : true
  },
  "user": {
    "appKey": "String",
    "userId": "String",
    "nickname": "String",
    "languageCode": "String",
    "valid": true,
    "lastLoginDate": "2023-01-01T00:00:00+09:00",
    "regDate": "2023-01-01T00:00:00+09:00"
  }
}
Key Type Description
user Object 유저 정보
user.appKey String 프로젝트 앱키(Appkey)
user.userId String 유저 ID
user.nickname String 유저 닉네임
user.languageCode String 언어 코드
user.valid boolean 유저 상태
true(정상), false(삭제)
user.lastLoginDate Date 마지막 로그인 일시. 날짜와 시간은 ISO 8601 표준에 따름.
user.regDate Date 구독 일시. 날짜와 시간은 ISO 8601 표준에 따름.

Delete User Info

사용자 정보를 삭제합니다.

[Method, URI]

Method URI
DELETE /game-talk/v1.1/appkeys/{appKey}/users/{userId}

[Request Header]

공통 사항 확인

[Path Variable]

Name Type Value
appKey String NHN Cloud 프로젝트 AppKey
userId String 유저 ID

[Request Parameter]

없음

[Request Body]

없음

[Response Body]

{
  "header" : {
    "resultCode" : 0,
    "resultMessage" : "String",
    "transactionId" : "String",
    "isSuccessful" : true
  }
}

Update User

사용자 정보를 수정합니다.

[Method, URI]

Method URI
PUT /game-talk/v1.1/appkeys/{appKey}/users/{userId}

[Request Header]

공통 사항 확인

[Path Variable]

Name Type Value
appKey String NHN Cloud 프로젝트 AppKey
userId String 유저 ID

[Request Parameter]

없음

[Request Body]

{
  "languageCode" : "String",
  "nickname" : "String"
}
Name Type Required Value
languageCode String mandatory 언어 코드
nickname String mandatory 유저 닉네임

[Response Body]

{
  "header" : {
    "resultCode" : 0,
    "resultMessage" : "String",
    "transactionId" : "String",
    "isSuccessful" : true
  }
}
TOP
